EDECAM
The EDECAM is our own high-performance infrared camera for demanding testing tasks in laboratories, manufacturing and automated inline inspection. Developed by edevis — specifically for active thermography with maximum frame rate, no shutter, no maintenance and no compromises.
Key features
Tailored to your needs
frame rate: up to 120 fps at full resolution
sensor: uncooled Bolometer (LWIR, 8-14 µm)
- shutter-less & maintenance-free
Thermal Sensitivity (NETD): <30 mK
Interfaces:
- -GigE Vision
- -GenICam
- -Trigger in/out
specifications
| IR resolution | 640 x 480 |
| Thermal resolution | < 30 mK |
| Detector | microbolometer FPA |
| Pitch | 17 µm |
| S-pectral range | 8-14 µm |
| Frame rate | 120 fps |
| Video-Streaming | Gigabit Ethernet |
| Digital input and output | 2 × in, 2 × out |
| Output level | 5V (TTL) |
| Input level | 3 V — 24 V |
| Power Supply | External 24 VDC or PoE (48 V) |
| Aperture | f/1.0 |

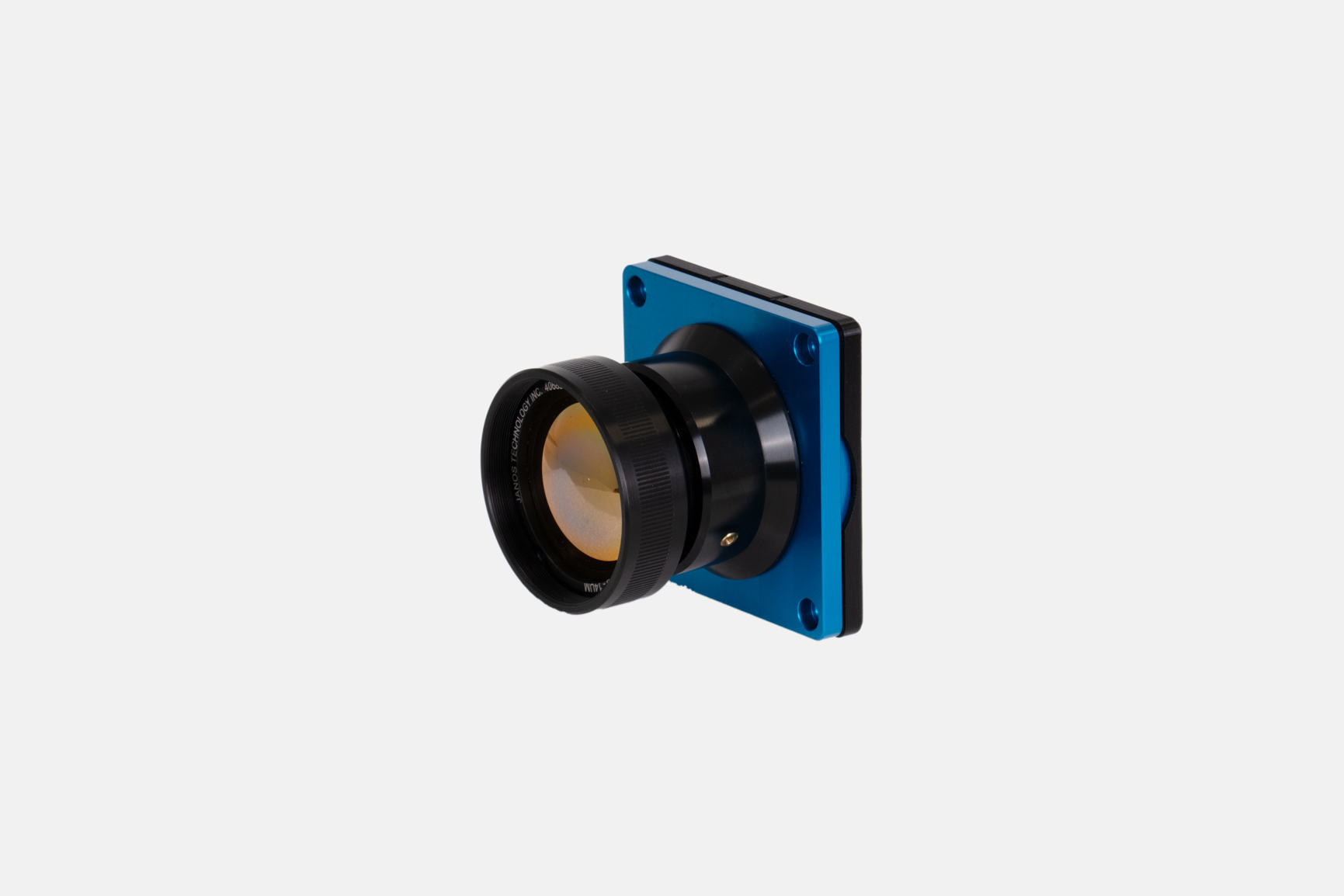

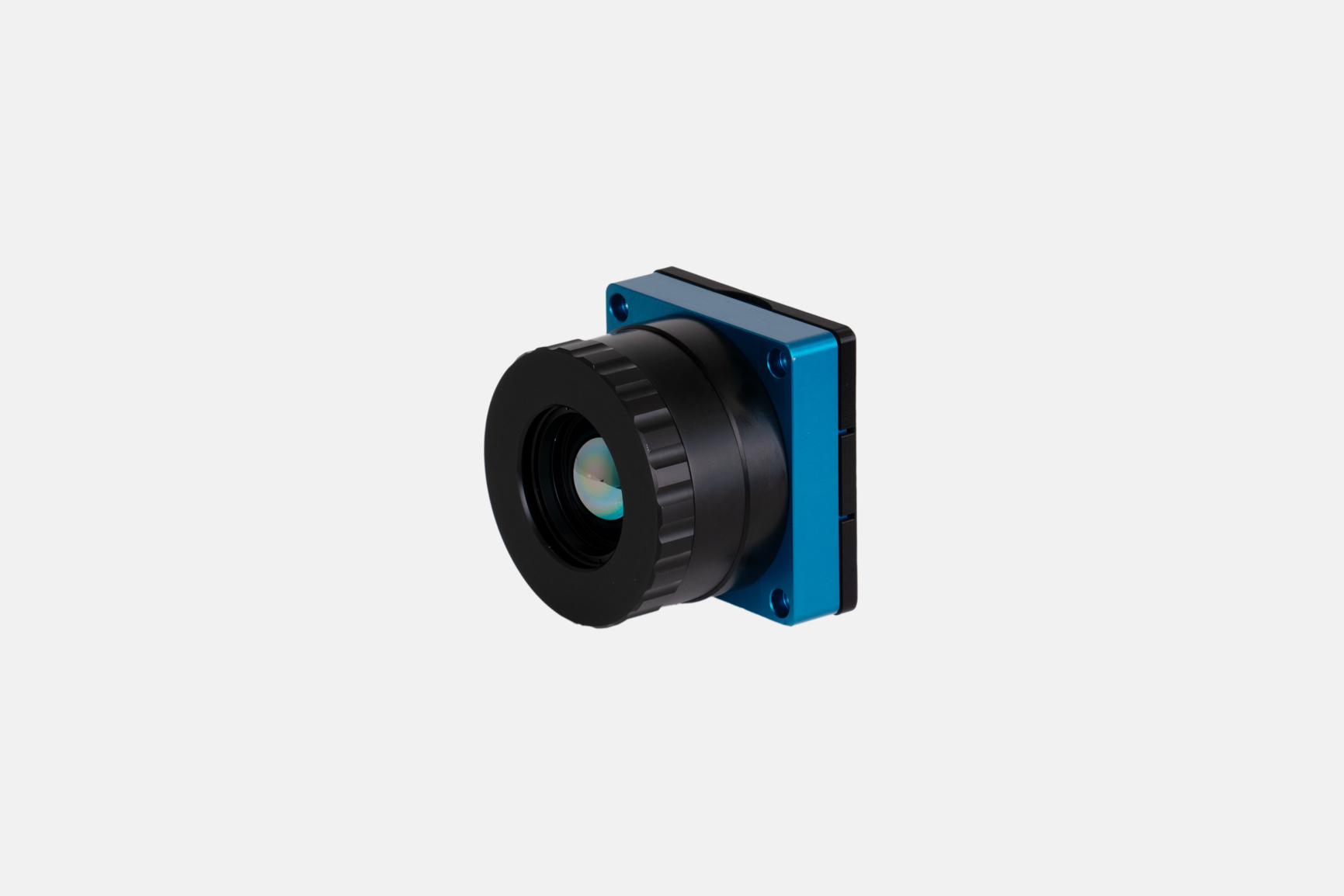

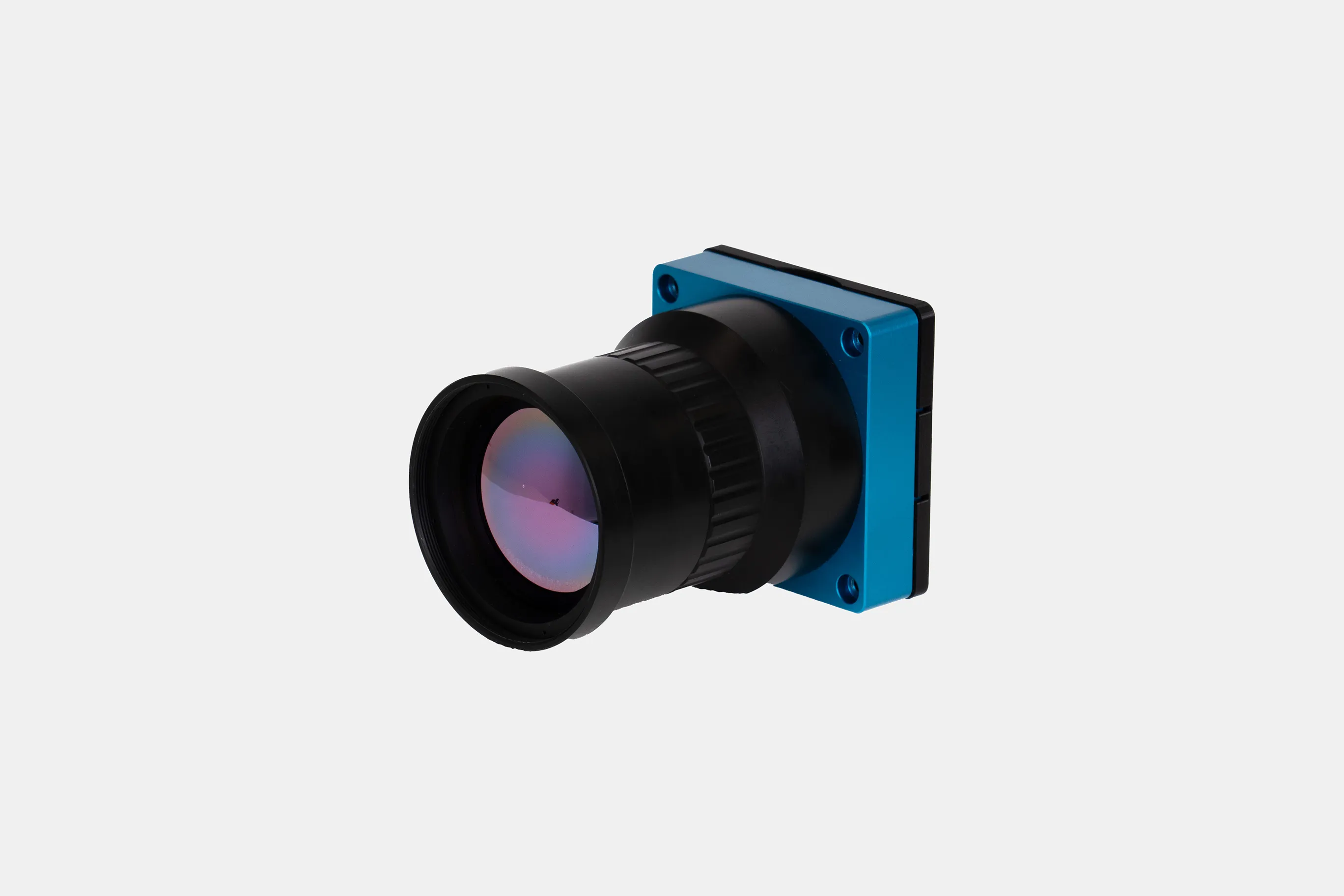

| Objektives (focal lengh) | 25mm, 50mm, 100mm |
| Case width | 58,5mm |
| Case height | 58,2mm |
Lenses
Unclear whether the Edecam detects its own faults?
In a short initial consultation, we will explain how we can provide you with useful support with thermography — clearly, transparently and without obligation.
FAQ
Our frequently asked questions — answered quickly and easily.
Is the EDECAM suitable for continuous operation in industrial applications?
What is the EDECAM and why was it developed?
What is the detection accuracy of the EDECAM?
What technical advantages does the EDECAM offer compared to conventional IR cameras?
Which interfaces and standards does the EDECAM support?
